SNE-ALPHA Tabletop SEM system

SNE-ALPHA Tabletop SEM system

The Smart Tabletop SEM system

Product information

Five nanometer resolution

Experience 5 nm resolution @30kV and 250,000 times magnification, higher than current best-in-class tabletop SEM.
Precise control of lens allows for optimal image capture without damaging samples.

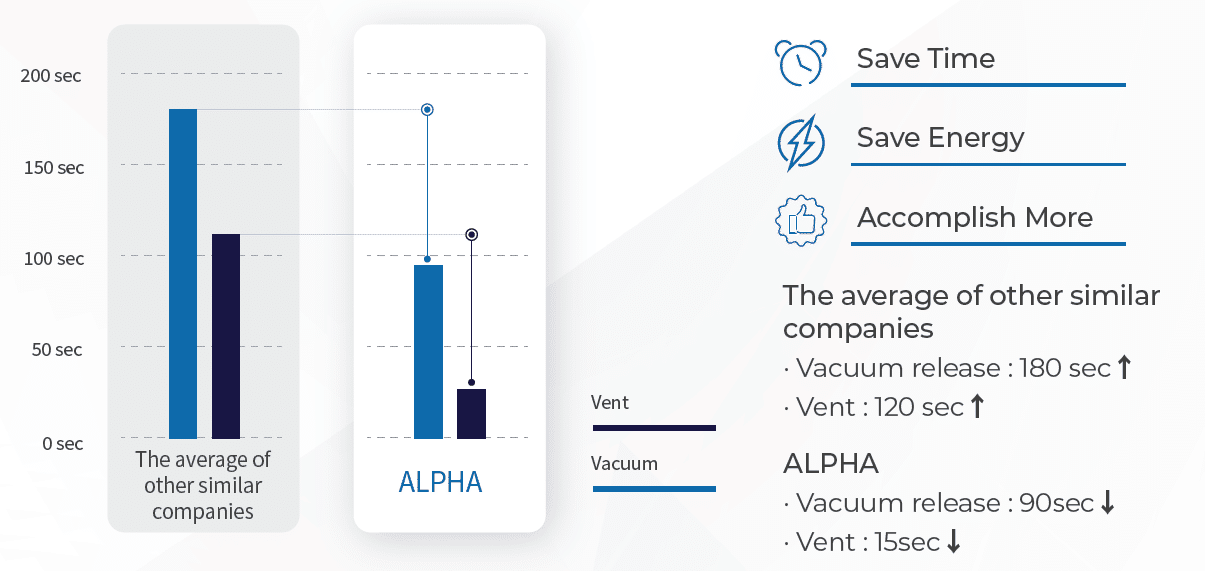

Save Time Preparing Samples

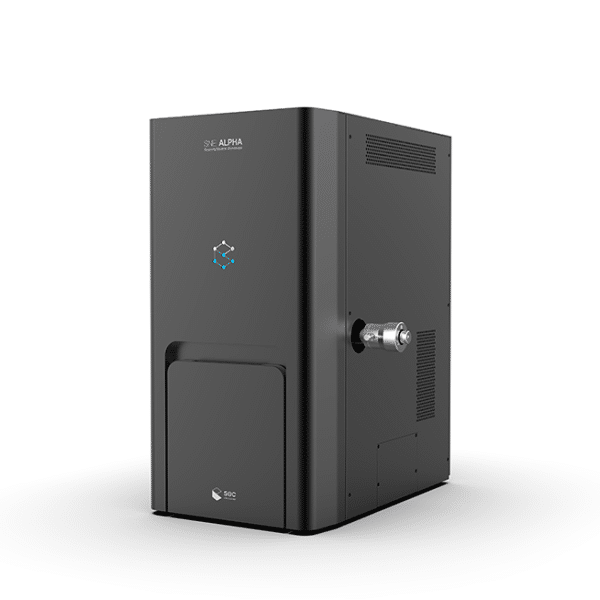

Compact Design

Uses less installation space thanks to its compact, well-laid-out design

  • 40% dimension reduction compared to previous models
  • With its more space-efficient configuration, the SNE Alpha can be installed in the smallest of laboratories with ease
  • 300(W) x 465(D) x 600(H)



A new, third generation Nano-Eye Software

  • A dramatically enhanced interface
  • Capture images with ease with a new and improved UI
  • With optimal adjustability, results can be viewed 60% faster than previous software



Upgraded automatic functions

  • The newly added Auto-Gun-Align allows users to capture images with ease
  • The enhanced Auto Focus enables users to pinpoint and capture desired images



Image Stitching

Capture a wider range of images

  • Large area scans are required for turning large samples into images and analyzing them
  • Allows a larger area of the sample to be selected that could not previously be captured in a single SEM image

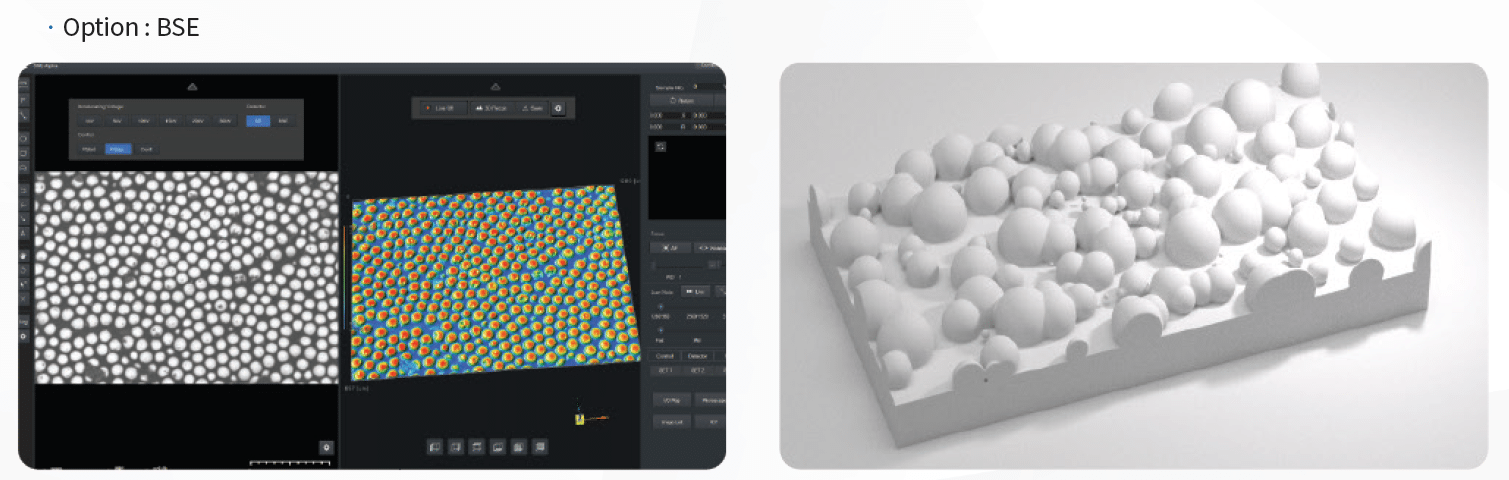

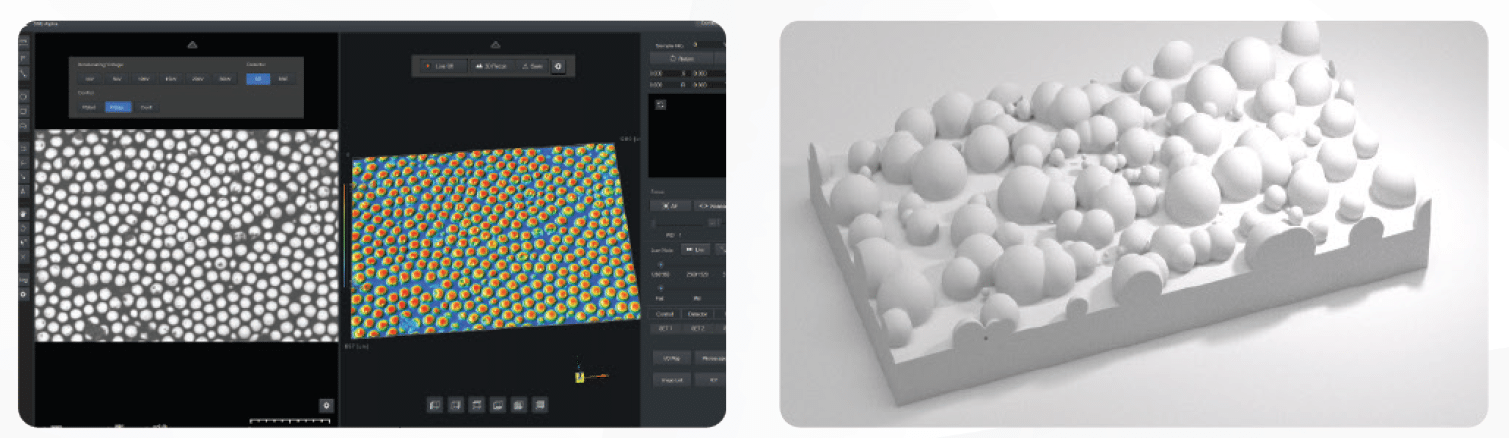

3D rendering

Inspect and analyze surface roughness of samples with ease and comfort with our newly equipped 3D rendering functions.





Specifications

Electron System
Resolution 5 nm (30kV, SE)
Magnification x30 ~ 250,000
Accelerating Voltage 1/5/10/15/20/30 kV(6 step)
Detector Standard : Secondary Electron (SE) Optional : Back scattered Electron (BSE)
Electron Gun Pre-centered Tungsten filament
Stage System
Stage Traverse X, Y : 40 mm / R : 360°, Z : 0~40 mm / T : -45~90°
Max. Sample Size up to 80 mm (Diameter) up to 40 mm (Height)
Image System
Automatic Function Auto Start, Auto Focus, Auto-Gun Align
Image Format BMP, JPEG, PNGM, TIFF
Vacuum System
Vacuum Mode High / Low (BSE mode)
Vacuum Pump Rotary Pump + Turbo molecular pump
Dimensions
Main Unit 300(W)×460(D)×600(H)mm (78 kg)
Controller Unit 120(W)×275(D)×185(H)mm (5 kg)
Rotary Pump 150(W)×200(D)×215(H)mm (15 kg)

Downloads

View brochure of SNE-ALPHA
